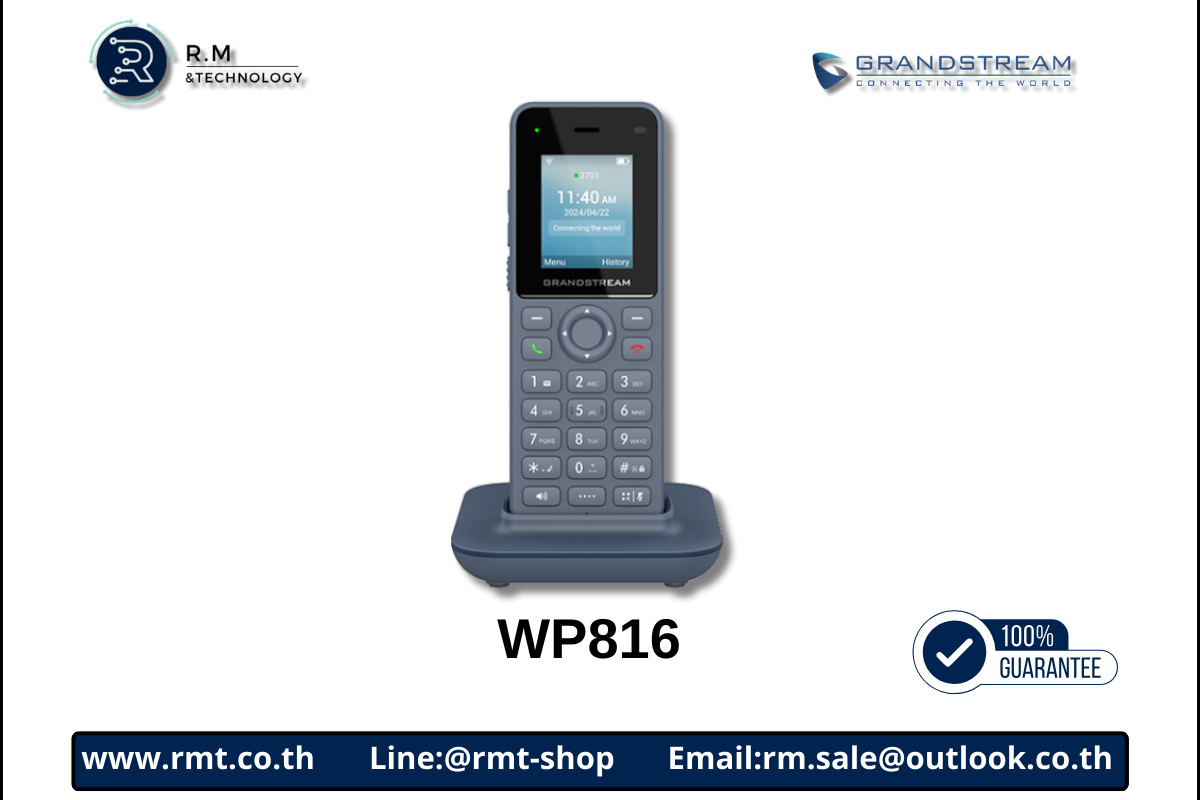

GRANDSTREAM WP816

หมวดหมู่สินค้า: Grandstream IP-PHONE
Cordless Wi-Fi IP Phone with Integrated Dual-Band 802.11a/b/g/n/ac/ax and 6-hour talk time
สอบถามราคาพิเศษ Line: @rmt-shop

01 มีนาคม 2569

ผู้ชม 1120 ผู้ชม

GRANDSTREAM WP816  Cordless Wi-Fi IP Phone with Integrated Dual-Band 802.11a/b/g/n/ac/ax and 6-hour talk time



WP816 มาพร้อมการออกแบบเสาอากาศขั้นสูงและรองรับการโรมมิ่ง ด้วยระยะเวลาสนทนาสูงสุด 6 ชั่วโมง และระบบเสียง HD พร้อมไมโครโฟนคู่ (Dual-MIC) ทำให้ WP816 เป็นตัวเลือกที่คุ้มค่า และมาพร้อมชุดคุณสมบัติที่ผสานความคล่องตัวและความทนทาน เพื่อตอบโจทย์ทุกความต้องการด้านโทรศัพท์แบบพกพา.

...

ข้อมูลสินค้า

  • Dual-band Wi-Fi with efficient antenna design and advanced roaming support
  • 2 SIP accounts, 2 lines
  • HD voice & dual MIC design with AEC and Noise Shield Technology
  • Rechargeable 1500mAh battery, 6-hour talk time, 120-hour standby
  • Integrated Bluetooth to connect headsets
  • Configurable button for push-to-talk
  • Type C USB port (supports fast charging) and 3.5mm headset jack
  • Accelerometer, emergency button
  • รับประกันสินค้า 1 ปี แบตเตอรี่ 6 เดือน





  • WP816

Protocol/Standards

SIP RFC3261, DNS (A record, SRV, NATPR), DHCP, SSH, NTP, STUN, LDAP, TR069, SNMP, STRP, RTP/RTCP, RTCP-XR, TFTP, SIMPLE, HTTP/HTTPS, TCP, UDP, TLS, ARP, ICMP, IPv4, IPv6, 802.1x

Voice Codecs and Capabilities

G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, Opus, in- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB,

Headset Noise Shield

Wi-Fi

Yes, integrated dual-band Wi-Fi 6 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz). 802.11k/r/v Supported

Wi-Fi Encryption

Support WEP, WPA, WPA2, WPA3 (personal)

Graphic

1.77 inch (128×160) color LCD, 1 * Dual color MWI

Bluetooth

Yes, integrated

Peripherals

2 soft keys, navigation keys, confirm key, dial key, hang up key, speaker key, programmable key, quick access and mute key, backlight DTMF keyboard, volume keys, Push-to-Talk key, accelerometer, proximity sensor

Push-to-Talk

Customizable function button for alarm and paging

Auxiliary Ports

3.5mm headphone interface (CTIA cable sequence), Type-C charging interface (supports fast charging)

Telephony

Hold, transfer, forward, 3-way audio conference, call park, downloadable phonebook (XML, LDAP, up to 1000 items), call waiting, call log (up to 200 records), auto answer, click to dial, flexible dial plan, personalized music ringtones, server redundancy and fail-over, push-to-talk

Wall Installation

Base supports wall installation

Security

Ordinary user and administrator level passwords based on MD5 and MD5 sess authentication, SIP authentication algorithms based on SHA-256, SHA-256 sess, SHA-512-256, SHA-512-256 sess, md5 sess. AES security profile, SRTP, TLS call encryption, 802.1x media access control

HD Audio

The earpiece is broadband audio, and the speaker is narrowband audio, supporting

HAC and dual Mic.

QoS

Supports Layer 3 QoS (Tos, DiffServ, MPLS, DSCP)

Multi-language

Simplified Chinese, Traditional Chinese, English, Arabic, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Magyar, Italian, Japanese, Korean, Latvian, Dutch, Polish, Portuguese, Russian, Swedish, Slovenian, Slovak, Turkish, Ukrainian

Upgrade/Provisioning

Firmware upgrade via FTP/TFTP/FTPS/HTTP/HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

Universal power adapter
Input: 100-240VAC; Output:+5VDC, 1A (5W)
1500mAh lithium-ion battery, standby time 120h, talk time 6h (laboratory data)

Physical

Handset dimensions: 135.00 x 49.00 x 15.5mm Charger cradle dimensions: 85.00 x 85.00 x 25.8mm Handset weight (not including battery): 82g Handset package weight (not including QIG): 389g

Temperature and Humidity

Operating Temperature: 0ºC to 45ºC; Operating Humidity: 10-90% (non-condensing) Storage Temperature: -20ºC to 60ºC; Storage Humidity: 10-90% (non-condensing)

Package Contents

WP816 phone, Type-C power adapter, charger base, belt clip, 1 lithium-ion battery, M3 screw, wall bracket, quick installation guide

Compliance

FCC, CE, RCM, IC



The following table describes the WP816 keypad keys.

Key

Description

3.5 mm headset jack

This port allows you to connect headphones or external speakers to the phone for audio output.

LED indicator

A small light that provides visual notifications for various events like incoming calls, messages, or charging status.

Earphone

Delivers audio output.

Volume Up key

A button used to increase the volume of audio output.

Volume Down Key

A button used to decrease the volume of audio output

PTT Key

PTT (Push-to-Talk) button, to initiate PTT call. This button can also be configured to trigger Alarm.

Navigation keys

Buttons used to navigate through menus, apps, and interfaces.

Off-hook / Dial key

Initiates or answers calls when pressed, and also used to dial numbers when making outgoing calls.

1 / Voicemail key

Long pressing this key initiates a call to your voicemail service, allowing you to check for new messages or manage voicemail settings.

Standard keypad

A grid of numeric keys used for dialing phone numbers, entering text, and navigating through menus by inputting numbers or letters associated with options.

* / Symobolic key / Silent Mode

This key is used to toggle the phone’s silent mode on and off, muting all incoming call and message notifications.

Handsfree / Speaker key

Pressing this key enables the phone’s speakerphone function, allowing for hands-free communication during calls.

Microphone

Picks up audio earpiece and hands-free calls

Type-C headphone &charging port

This port serves a dual purpose, allowing you to connect Type-C headphones for audio output and charging the phone using a compatible Type-C cable.

Dedicated function key

This button is assigned a specific function or shortcut, such as launching a specific app, activating a feature, or performing a predefined action.

Mute/Shortcut Key

A button that quickly silences incoming calls or notifications when pressed, and may also be customizable to serve as a shortcut for accessing frequently used features.

# / Input method switching / Lock key

Does one of the following:

  • When pressing #: Redials the last dialed number, for this to work the Key As Send option under Account settings => Call settings should be set to #



  • Lock key: Long press to lock keypad against unintentional entries, for this to work enable lock screen from LCD settings  under System settings => Security Settings => Screen Lock



  • Input method switching: Allows switching between different input methods (like keyboards types)



On-hook /Power key

This key serves a dual purpose, ending calls or switching off the phone when pressed for a longer duration, and turning on the phone or waking it from sleep mode when pressed briefly.

MENU/OK key

This key serves a dual purpose, opening the menu interface or confirming selections, such as when navigating through apps or options.

Softkeys

Correspond to functions displayed on the LCD. These functions change depending on the current context.

Color LCD Screen

1.77 inch (128×160) IPS color LCD screen

Proximity sensor

The proximity sensor detects when the phone is close to the caller’s face, turning off the display to prevent accidental touches and save battery life.

Noise Canceling Microphone

A microphone equipped with technology to reduce background noise, resulting in clearer audio during calls by minimizing unwanted sounds from the surrounding environment.
